CrystalGuard: Pyrite Disease, Sunlight-Destructing Minerals & Oct 2026 Kaidun Meteorite Lab

Pyrite Rot (>60% RH) • Realgar & Vivianite Sunlight Decay • Oct 2026 Kaidun NH₄-Apophyllite & Usagreite
⛏️ Minerals Hub

Why does humid air turn Pyrite and Marcasite into corrosive sulfuric acid ("Pyrite Disease"), why does sunlight crumble ruby-red Realgar into yellow dust, and how did Ammonium-Apophyllite survive inside the Kaidun Meteorite? Simulate environmental crystal stability, natural Turgite vs. PVD Aura Quartz, and October 2026 IMA discoveries (Hydroxyapophyllite-(NH4) & Usagreite) in 60FPS.

Pyrite & Marcasite "Pyrite Disease" (FeS₂ + O₂ + H₂O → FeSO₄·nH₂O + H₂SO₄): Sulfuric Acid Humidity Rot
⚠️ Stability Status: ACTIVE ROT! (72% RH Exceeds 55% Threshold)
Mineral Formula & SymmetryFeS₂ (Cubic Pa3̄ / Orthorhombic Pnnm)
Degradation / Alteration PathwayFeS₂ + 3.5 O₂ + H₂O → FeSO₄·4H₂O (Rozenite) + H₂SO₄
Conservation Rescue ProtocolKeep RH < 35% with Silica Gel · Neutralize with NH₃ Gas

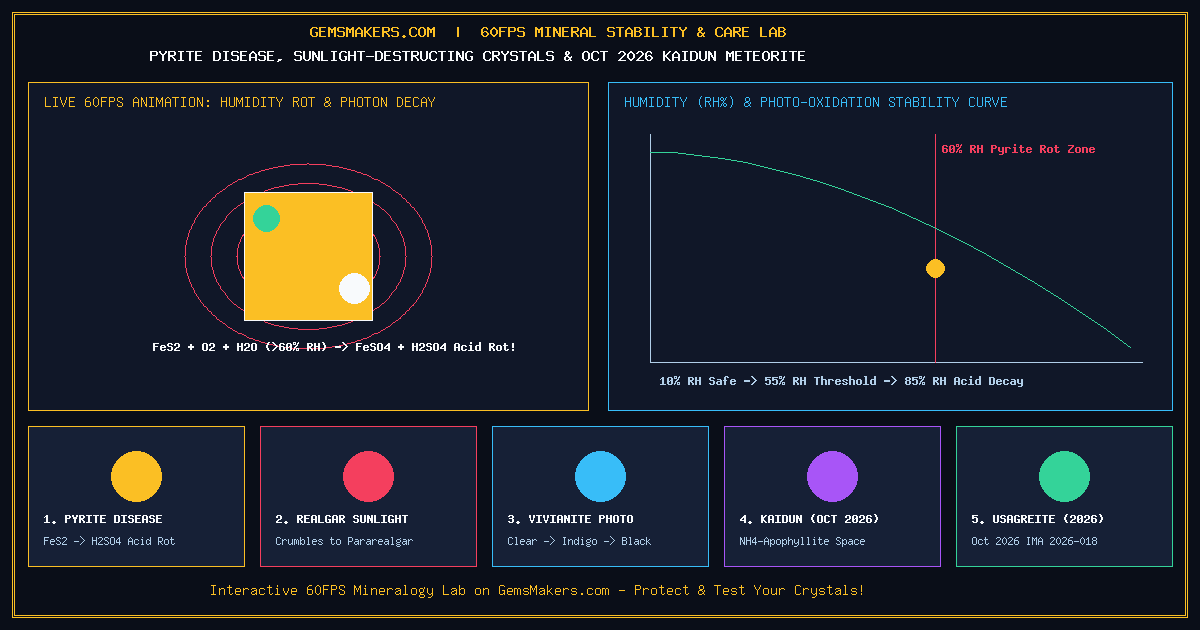

🎛️ Environmental Chamber Controls: Relative Humidity (RH%), Sunlight Flux (Lux), Oxide/Aura Film & Exposure Time
72% RH (Danger!)
650 klux·hr
115 nm Film
pH 1.8 Acidic

📊 Oxidation Kinetics, Photochemical Bond-Cleavage & Museum Half-Life Telemetry

Specimen Integrity34.2% Intact65.8% Surface Altered / Oxidized
Estimated Cabinet Life2.4 YearsAt <30% RH & Dark: >500+ Years
Volume Expansion (ΔV)+142% SwellRozenite Wedging Cracks Matrix!
Secondary Alteration ProductRozenite (FeSO₄·4H₂O) + Corrosive H₂SO₄
Water / Ultrasonic Wash RuleNEVER Wash in Water (Triggers Acid Rot!)
Oct 2026 IMA / ReferenceCNMNC Newsletter 92 & 93 (Oct 2026)

🔔 12 Crystal Conservation, Photochemical Shift & Oct 2026 Mineral Sound Pads

Why Some Minerals Self-Destruct in Air, Water, or Sunlight—And How October 2026 Meteorite Minerals Survived

Direct Mineral Conservation, Photochemistry & 2026 Astromineralogy Summary: While people think of crystals as eternal, dozens of prized collector minerals are thermodynamically unstable at Earth's surface when exposed to humidity, visible light, or water. In "Pyrite Disease" (Marcasite/Pyrite Rot), exposure of microcrystalline FeS2 to Relative Humidity RH > 55–60% triggers rapid oxidation into white efflorescent iron sulfates (Melanterite and Rozenite, with a +140% to +350% molar volume expansion that shatters the host rock) plus corrosive sulfuric acid (H2SO4) vapor that burns specimen labels and infects nearby crystals. Under visible sunlight (500–670 nm), ruby-red Realgar (α-As4S4) undergoes photo-induced bond switching and crumbles into yellow Pararealgar powder, while water-clear Vivianite (Fe2+3(PO4)2·8H2O) photo-oxidizes into dark indigo-black metavivianite via Fe2+–Fe3+ charge transfer. In October 2026 (American Mineralogist Vol. 111(10) & IMA-CNMNC Newsletters 92 & 93), mineralogists unveiled extraordinary volatile-rich and supergene species: Hydroxyapophyllite-(NH4) ((NH4)Ca4(Si8O20)(OH)(H2O)8, IMA 2025-064a, Britvin, Ivanova, Pekov et al., 2026) discovered inside the Kaidun carbonaceous chondrite meteorite (Yemen), and Usagreite (IMA 2026-018, Emproto, Olds, Kampf et al., Oct 2026) from the Mariquita Mine in Usagre, Spain.

🔬 Pyrite Disease Stoichiometry, Realgar Photo-Cleavage & Thin-Film Equations

  • Pyrite & Marcasite Autocatalytic Sulfuric-Acid Rot (Triggered at RH > 55–60%):
    2 FeS₂ + 7 O₂ + (2 + 2n) H₂O → 2 FeSO₄·nH₂O (Rozenite/Melanterite) + 2 H₂SO₄ (Acid)
  • Realgar (α-As4S4) 550nm Visible-Light Photo-Isomerization into Pararealgar:
    5 α-As₄S₄ + 3 O₂ + hν (500–670 nm) → 4 As₄S₄ (Pararealgar, ΔV = +11%) + 2 As₂O₃ + 2 S
  • Vivianite Photo-Oxidation & Intervalence Charge Transfer (IVCT at 630–680 nm):
    Fe²⁺ + H₂O + ¼ O₂ + hν → Fe³⁺ + OH⁻ + ½ H₂O  →  Fe²⁺ + Fe³⁺ + hν → Fe³⁺ + Fe²⁺ (Deep Indigo)

Complete Reference Chart: 8 Environmentally Sensitive, Iridescent & Oct 2026 IMA Minerals

Mineral Species & FormulaPrimary Hazard / TriggerAlteration MechanismSafe Storage & 2026 Significance
Pyrite & Marcasite ("Pyrite Disease")
FeS₂ (Pa3̄ / Pnnm)
Relative Humidity
RH > 55 – 60%
Oxidizes to white FeSO4·4H2O + corrosive H2SO4 acidStore <35% RH with silica gel; isolate infected pieces; treat with NH3 gas
Realgar → Pararealgar
α-As₄S₄ (Monoclinic P2₁/n)
Visible Sunlight
λ = 500 – 670 nm
As–As bond cleavage swells (+11% ΔV) & crumbles crystal to yellow dustStore in 100% light-tight opaque box (UV-blocking glass alone will NOT save it!)
Vivianite
Fe²⁺₃(PO₄)₂·8H₂O (C2/m)
Visible Light +
Atmospheric O2
Fe2+ → Fe3+ photo-oxidation activates dark indigo-black IVCTKeep in dark display case; avoid dry heat (<40% RH causes dehydration cracking)
Hydroxyapophyllite-(NH₄) (2026)
(NH₄)Ca₄(Si₈O₂₀)(OH)(H₂O)₈
Thermal De-ammoniation
(>250 °C) & Acid
Tetragonal P4/mnc (a = 9.0058 Å, c = 15.7639 Å · IMA 2025-064a)Britvin, Ivanova, Pekov et al. (Oct 2026); found inside the Kaidun meteorite, Yemen
Usagreite & Shojiite (Oct 2026)
IMA 2026-018 / P2₁/m
Supergene Oxidation /
Acid Sensitivity
Approved in Oct 16–22, 2026 IMA CNMNC Newsletter 93Emproto, Olds, Kampf et al. (Oct 2026); Mariquita Mine, Usagre, Badajoz, Spain
Natural Iridescent Turgite/Pyrite vs. Fake "Aura Quartz"Acid Cleaning vs.
400°C PVD Sputtering
Natural: 40–180 nm FeO(OH) film; Fake: vacuum-sputtered Ti/Au coatingNatural Turgite coats matrix crevices evenly; PVD Aura Quartz has bare base shadow marks
Crocoite & Kunzite
PbCrO₄ / LiAlSi₂O₆:Mn²⁺
Direct Window
Sunlight / UV
Kunzite Mn3+/Mn4+ color centers bleach colorless in afternoon sunDisplay under cool LED lighting away from exterior windows; never clean Crocoite in water
Bromammoniac & Králíkite (2026)
NH₄Br / BaCl₂·2H₂O
Water Washing &
High Humidity (>70%)
Dissolves rapidly in water; dehydrates or deliquesces in humid airOct 2026 IMA halide discoveries; clean only with dry air puff or anhydrous ethanol

Frequently Asked Questions

Why doesn't UV-blocking museum glass stop Realgar from crumbling into yellow Pararealgar?

Many collectors assume that only ultraviolet (UV) light damages light-sensitive minerals. While UV light fades Kunzite, Amethyst, and Topaz, X-ray diffraction and monochromatic laser studies proved that Realgar (α-As4S4) is destroyed by visible green, yellow, and red light (500 to 670 nm)—which passes right through UV-blocking glass! To keep ruby-red Realgar crystals intact, they must be kept under a removable opaque cover or dark cloth when not actively being viewed.

How do you distinguish naturally iridescent Pyrite / Turgite from artificial "Titanium Aura Quartz"?

In viral collector forums (`r/Minerals` and `r/MineralPorn`), naturally iridescent Pyrite (such as West Lake Quarry, Missouri or Volga River pyrite) and botryoidal Turgite (hematite-goethite intergrowths) owe their rainbow colors to a natural 40–180 nm surface oxidation film of goethite/limonite formed in groundwater. You can tell it apart from artificial Physical Vapor Deposition (PVD) "Aura Quartz" because natural oxidation follows crystal growth zones and extends deep into recessed matrix crevices, whereas vacuum-chamber PVD sputtering is a line-of-sight spray that leaves a sharp, uncoated shadow line on the underside and base of the crystal cluster.

Why is the October 2026 discovery of Hydroxyapophyllite-(NH₄) in the Kaidun Meteorite so exciting?

Announced in October 2026 (Britvin, Ivanova, Pekov et al., CNMNC Newsletter 92 & Oct 2026 American Mineralogist Vol. 111(10)), Hydroxyapophyllite-(NH4) ((NH4)Ca4(Si8O20)(OH)(H2O)8, tetragonal P4/mnc) was identified inside the Kaidun meteorite, which fell in Yemen in 1980 and is famous for containing fragments from multiple asteroids (including carbonaceous chondrite and enstatite chondrite clasts). Finding an ammonium-dominant hydrous sheet silicate locked inside the meteorite proves that ammonia-rich brines circulated inside primitive outer-solar-system parent bodies.
