Why Greenland Cryolite Vanishes in Water, How Iceland Spar Splits Every Word in Two & October 2026 Ultra-High-Refraction Minerals

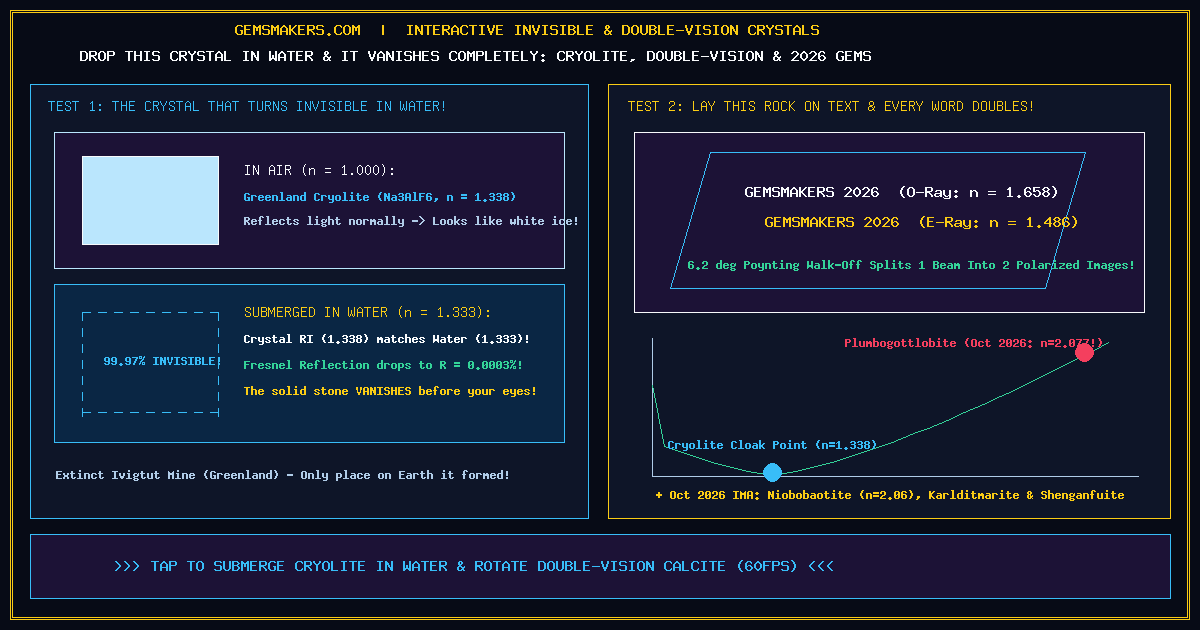

Direct Optical Refraction, Cloaking & Double-Vision Summary: Why can we see a clear ice cube or a clear quartz crystal in a glass of water? Because light bends and reflects whenever it crosses a boundary between two materials with different Refractive Indices (n), governed by Fresnel's Reflectance Equation: R = [(n1 − n2)/(n1 + n2)]2. In Cryolite (Na3AlF6, from the historic Ivigtut pegmatite in Greenland), highly electronegative fluorine atoms bind tightly around [AlF6]3− octahedra, giving the crystal an extraordinarily low refractive index of n = 1.338—virtually identical to ordinary liquid water (n = 1.333). The instant you submerge a chunk of white-looking Cryolite in water, boundary reflection drops to 0.00035% and the solid crystal becomes 99.97% invisible to the naked eye! Conversely, when light enters strongly anisotropic crystals like Iceland Spar Optical Calcite (CaCO3, Δn = 0.172) or Titanite Sphene (CaTiSiO5, Δn = 0.120), the crystal splits each ray into two polarized beams—a stationary Ordinary Ray (O-ray) and an offset Extraordinary Ray (E-ray) that walks sideways at 6.2°, doubling every word beneath the stone! And at the upper extreme of optical density sit four newly published October 1, 2026 American Mineralogist (Vol. 111, Issue 10) discoveries whose refractive indices exceed standard immersion liquids: Plumbogottlobite (PbMg(VO4)(OH), IMA 2025-075, n = 2.077), Niobobaotite (Ba4(Ti2.5Fe1.5)Nb4(Si4O12)O16Cl, n = 2.06), Karlditmarite (Cu9O4(PO4)2(SO4)2, nα = 1.872), and Shenganfuite (PbTe4+3O5(OH)Cl3(H2O)).
🔬 Fresnel Immersion Cloaking, Poynting Walk-Off & Becke Line Equations
- Fresnel Boundary Reflectance (R%) When Crystal (nc) Is Submerged in Liquid (nliq):
R (%) = [ (n_c − n_liq) / (n_c + n_liq) ]² × 100→ Cryolite (1.338) in Water (1.333):R = 0.00035% (Invisible!) - Uniaxial Extraordinary-Ray Poynting Vector Walk-Off Angle (α) & Double-Vision Text Split (δ):
tan α = [ (n_ω² − n_ε²) · sin θ · cos θ ] / [ n_ω² · sin²θ + n_ε² · cos²θ ]|δ_split = d_thick · tan α - Microscope Becke Line Optical Relief & Focus Rule:
Δn_relief = n_mineral − n_liquid(Lowering stage / increasing focus distance moves bright Becke halo into higher-n medium)
Complete Reference Chart: 8 Invisible-in-Water, Double-Vision & Oct 2026 High-RI Minerals
| Mineral Species & Formula | Refractive Index (n) & Δn | Liquid Cloak / Double-Vision Effect | Locality & Oct 2026 Significance |
|---|---|---|---|
Cryolite ("Ice-Stone")Na₃AlF₆ (Monoclinic P2₁/n) | n = 1.338 – 1.339 (Δn = 0.001) | Vanishes 99.97% in Water (nwater = 1.333) | Ivigtut Pegmatite, Greenland (mine depleted in 1987); lowest RI of any major collector mineral |
Iceland Spar Optical CalciteCaCO₃ (Trigonal R3̄c) | nω = 1.658, nϵ = 1.486 (Δn = 0.172) | Splits Every Printed Word Into 2 Images (α = 6.2°) | Helgustaðir (Iceland) & Chihuahua (Mexico); rotating crystal makes E-ray orbit around O-ray |
Titanite ("Sphene") & ZirconCaTiSiO₅ (Monoclinic C2/c) | n = 1.885 – 2.050 (Δn = 0.120 – 0.165) | Doubles All Back-Facet Junctions + 0.051 Fire | Baja California, Alps & Pakistan; extreme back-facet doubling separates it from Diamond/CZ |
Hydrophane Ethiopian OpalSiO₂·nH₂O (Porous Nanospheres) | n = 1.440 (Dry) → 1.380 (Water-Soaked) | Absorbs Water → Turns Crystal-Clear & Hides Fire | Welo, Ethiopia; water fills air-voids between silica spheres, erasing RI contrast until dried |
Plumbogottlobite (Oct 2026)PbMg(VO₄)(OH) (IMA 2025-075) | ncalc = 2.077 (Exceeds Immersion Liquids!) | Extreme Positive Relief; Adamantine Luster | Kampf, Désor & Ma (2026 EJM 38:209 & Oct 2026 Am. Min. 111:10); Glücksstern Mine, Germany |
Niobobaotite (Oct 2026)Ba₄(Ti₂.₅Fe₁.₅)Nb₄(Si₄O₁₂)O₁₆Cl | ncalc = 2.06 (Uniaxial + · Tetragonal) | High-RI 4-Membered Ring Cyclosilicate (VHN = 647) | Ge et al. (Oct 2026 Am. Min. Vol. 111(10) · IMA 2022-127a); Bayan Obo strategic Nb deposit |
Karlditmarite (Oct 2026)Cu₉O₄(PO₄)₂(SO₄)₂ (IMA 2021-003) | nα = 1.872, nγ = 1.810 (Δn = 0.062 · Biaxial −) | Very High Becke-Line Relief; Strong Double Refraction | Siidra et al. (2026 Am. Min. 111(6) & Oct 2026 111(10)); 1st Cu phosphate-sulfate (Tolbachik) |
Shenganfuite & Yttrotungstite-(Nd)PbTe⁴⁺₃O₅(OH)Cl₃(H₂O) / NdW₂O₇... | n > 2.00 (Lone-Pair Te4+ & Pb2+ / W6+) | Extreme Specular Relief & Birefringence | Yang et al. & Dewaele et al. (Oct 1, 2026 American Mineralogist Vol. 111, Issue 10) |
Frequently Asked Questions
Can you make a regular clear Quartz crystal or Glass marble turn invisible in liquid just like Cryolite?
Yes! Cryolite (n = 1.338) is unique because it matches the refractive index of plain tap water (n = 1.333). Clear Quartz (n = 1.544–1.553) and Pyrex Borosilicate Glass (n = 1.474) remain visible in water because their refractive indices are much higher than 1.333. However, if you drop Pyrex glass into vegetable oil or glycerin (n ≈ 1.474), or drop a clear Quartz crystal into clove oil / baby oil / benzyl benzoate (n ≈ 1.54), the boundary reflection vanishes and the Quartz crystal disappears! Gemologists use this exact trick ("immersion microscopy") to look inside rough emeralds, rubies, and sapphires to spot hidden color zoning and curved synthetic growth striae.
Why did my Ethiopian Welo Opal turn completely clear and lose its rainbow fire after getting wet in the shower?
Most Ethiopian Welo opals are "Hydrophane" opals—meaning their microscopic silica sphere lattice is porous like a sponge and can absorb up to 10–15% of its weight in water. When dry, the tiny spaces between the silica spheres are filled with air (n = 1.000), creating a large refractive index contrast against the silica (n = 1.45) that scatters white light and diffracts bright rainbow fire. When soaked in water, liquid water (n = 1.333) floods those nanopores, matching the silica's refractive index so closely that the stone turns water-clear and its rainbow play-of-color temporarily vanishes! Never use a hairdryer to speed-dry it (heat cracks it); let it air-dry naturally on a towel for 2 to 5 days and the rainbow fire returns 100%.
Why couldn't mineralogists measure the refractive index of October 2026 Plumbogottlobite with standard lab liquids?
As reported by Anthony R. Kampf, Joy Désor, and Chi Ma in 2026 (European Journal of Mineralogy 38:209–216 & October 2026 American Mineralogist Vol. 111(10)), standard gemological and mineralogical refractive-index immersion liquids top out at n = 1.80 to 2.00. Because Plumbogottlobite (PbMg(VO4)(OH), IMA 2025-075) packs heavy divalent lead (Pb2+, with its highly polarizable 6s2 lone pair) alongside pentavalent vanadate ([VO4]3−) into a dense orthorhombic Pnma lattice (density = 5.359 g/cm3), its Gladstone–Dale refractive index reaches n = 2.077—giving its tiny orange-brown tablets a brilliant, diamond-like adamantine luster!
